SHE2超高扭矩系列齿轮箱—挤出机专用

作者:国茂减速机来源:国茂股份发表时间:2021-09-02浏览:

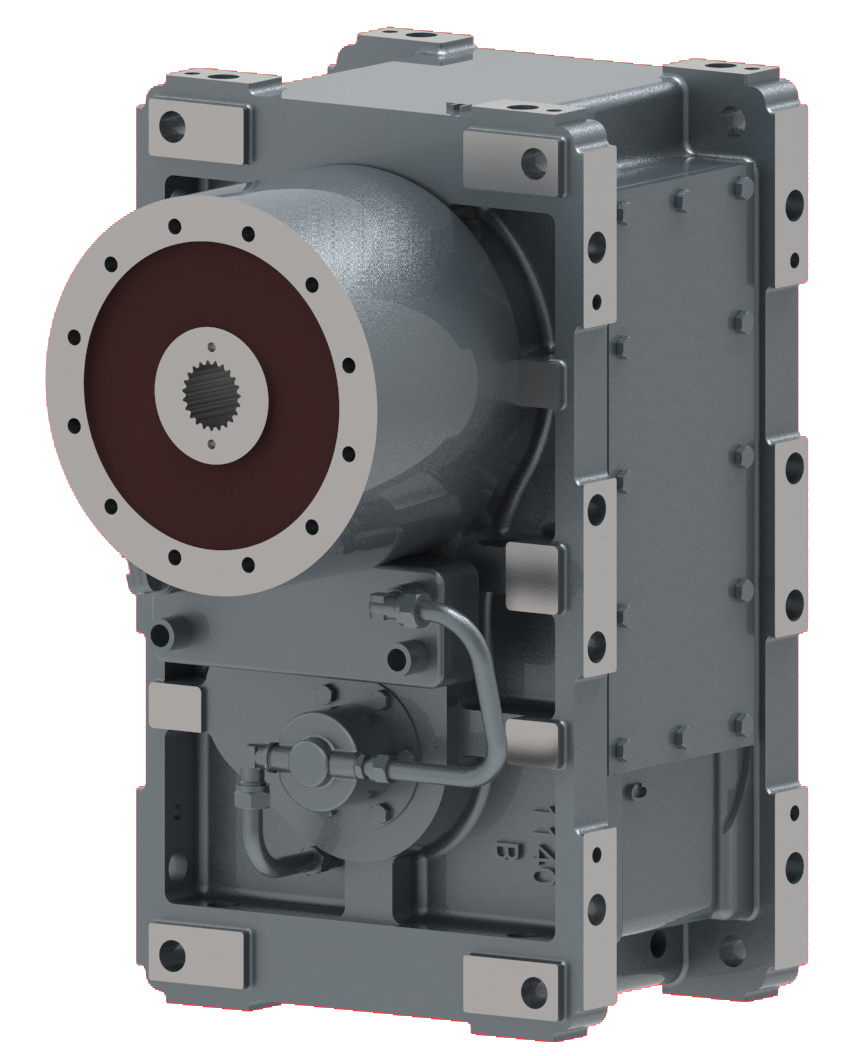

    产品介绍SHE2超高扭矩系列齿轮箱,SHE2 High Torque Series Gear Box.

    SHE2超高扭矩系列齿轮箱

    SHE2超高扭矩系列齿轮箱

    SHE2超高扭矩系列齿轮箱

    SHE2超高扭矩系列齿轮箱



    1、箱体独家采用QT400—18材料一体、厚壁设计,吸震整体箱体,完全吸收挤出过程中的轴向力,保证主机的高稳定和平稳性。箱内波纹表面的设计,有利于降低噪音,散热及零件的润滑。

    2、独特的齿轮25°压力角设计, AGMA 010以上的精度加工,17NiCrMo6,20CrMnMo的齿轮材料,齿轮独特的修形和参数优化,使该机型具有极强的抗过载能力同时又能保证低噪音和高效率。

    3、齿轮箱采用世界一流的FAG、 TIMKEN 、 SKF 轴承,能更快、更正确地调整轴承轴向间隙保证最长的轴承使用寿命。

    4、推力轴承采用世界一流的SKF 、 FAG 轴承,更强的机械性能和散热性,保证最高的轴向承载可靠性和无故障率。

    5、全部采用进口 SIMRIT 、 SKF 油封,齿轮箱的高、低速轴均采用双油封形式,彻底杜绝漏油可能性。

    6、速比—新型SHE2齿轮箱为2级传动设计,其适用速比最大到22.4。

    7、螺杆连接—可按标准要求选用 GB /T3478.1—2008的渐开线优化,也可以选用 GB /T1095的180°双键槽。DIN5480渐开线花键、 GB /T1144的矩形花键等。任何螺杆料筒的链接问题可与捷诺联系。

    8、工况系数—传输功率及扭矩是依据工况系数为1来考虑的,客户可以按具体的适用状况来选择合适的工况系数,为选择适宜的齿轮箱,我们建议选择工况为1.5— 2.0之间的齿轮箱型号。

    1.The housing is exclusively made of QT400-18 materials wholly, designed with thick wall, which can absorb the axial force during extrusion completely and ensure the high stability and stationarity of the gear unit. The corrugated surface of the internal housing is designed to reduce noise, promote heat dissipation and increase lubricity for parts.

    2.The unique design of 25 degree pressure angle of gears, machining precision above AGMA 010 gear standard and used lubrication material of 17NiCrMo6,20CrMnMo, with unique shape modification and parameter optimization to gears, enable SHE series have a strong anti-overload capacity and make sure low noise and high efficiency at the same time.

    3.The gearboxes are equipped with bearings of world-class brand such as FAG, TIMKEN and SKF, which can adjust the bearing axial clearance more quickly and correctly to ensure the longest bearing service life.

    4. Thrust bearings adopt world-class brand of SKF and FAG, with stronger mechanical properties and heat dissipation, ensuring the highest axial bearing reliability and zero failure rate.

    5.Imported oil seals of brand SIMRIT and SKF are fully used, double oil seals are used in all the high speed shaft and low speed shaft inside the gearboxes, which eliminate the possibility of oil leakage completely .

    6.Gear ratio -- The new SHE2 gearbox is designed as 2-stage transmission device, with maximum applicable ratio of 22.4.

    7. Screw connecting - The involute optimization of GB/T3478.1-2008 can be selected according to the standard requirements. The 180 degree double keyway of GB /T1095 , DIN5480 involute spline and GB /T1144 rectangular spline and so on can also be selected.  Any connecting questions of screw barrel, please contact with GNORD.

    8. Service factors(SF) - The transmission power and torque are considered on the condition of   the service factor of 1. Customers can select the appropriate service factors according to the specific applicable conditions. In order to select a suitable gearbox, we suggest the gearboxes with service factor between 1.5 and 2.0 can be chosen.

    GNORD品牌介绍

    GNORD品牌隶属于美国Acorn Industrial Corporation,总部位于美国,生产基地位于江苏常州,具有对各类传动领域及高精密部件设计、研发、生产、营销、服务的全方位能力。主要面向全球高端传动市场,以其高水准的产品研发、制造能力,专注于为中高端工业品牌客户提供多领域产品及全方位服务。

    GNORD致力于减速电机、齿轮箱、高性能焊接机器人专用齿轮箱等高端产品领域,采用德国DIN、美国AGMA标准设计,具有强劲、精密、低噪等品质保障。GNORD深耕原创设计、个性定制、精益制造、数字工厂等技术体系,通过科技赋能为客户提供最优品质的动力传动产品、最优定制的传动解决方案,致力成为高端减速机行业市场的引领者。

    GNORD is affiliated with Acorn Industrial Corporation with headquarters in America and its production base in Changzhou, Jiangsu Province. GNORD is fully capable of designing, developing, producing, marketing, and serving various transmission fields with high-precision components. GNORD mainly focuses on the premium power transmission market. It provides various products and a full range of services to high-end industrial customers with its exceptional levels of product research , development and manufacturing capacity.

    GNORD is committed to high-end products with strong, precise, low-noise quality assurance, such as gear motors, gearboxes, special gearboxes for high performance welding robots, and other products which are in strict accordance with the technical requirements of high-end market products and German DIN standard design for product production and quality control.GNORD deeply focus on original design, personalized customization, lean manufacturing, digital factory and other technical systems. GNORD provides customers with the best quality power transmission products and optimal customized transmission solutions through technology to become the leader in the high-end gearbox industry.
